Production Digital Creasing - Perforation Machine

• Accuracy
• 0.2 mm

• Color
• White / Blue (as shown in image)

• Connectivity Options
• Optional USB Slot

• Cooling System
• Air Cooled

• Dimension (L*W*H)
• 1300 x 620 x 1050 mm

• Drive
• Electric

• Features
• High precision, programmable memory, adjustable creasing depth, fast setup

• Frame Type
• Heavy Duty Steel

• Frequency
• 50 Hz

• Lubricating System
• Manual

• Machine Type
• Digital Production Creaser/Perforator

• Model No
• ACP958

• Noise Level
• <72 dB

• Operating Temperature
• 5-40C

• Operating Type
• Automatic

• Power
• 350 W

• Power Rating
• 350 W

• Power Source
• Other, Electric

• Pressure
• Adjustable (not specified)

• Product Type
• Other, Digital Creasing and Perforation Machine

• Production Capacity
• 5000 sheets/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Production Digital

• Usage & Applications
• Creasing and perforating digital print media, brochures, covers, cards, booklets, invitations

• Voltage
• 220 V

• Weight (kg)
• Approx. 90 kg

• Accuracy
• 0.1 mm

• Color
• White / Light Grey

• Connectivity Options
• USB, Ethernet

• Cooling System
• Air Cooling

• Dimension (L*W*H)
• 1220 x 630 x 1120 mm

• Drive
• Stepper Motor Drive

• Features
• Programmable, Multi-position creasing, Micro-adjustment, High precision feed

• Frame Type
• Heavy Duty Steel Frame

• Frequency
• 50Hz

• Lubricating System
• Automatic

• Machine Type
• Creasing & Perforating

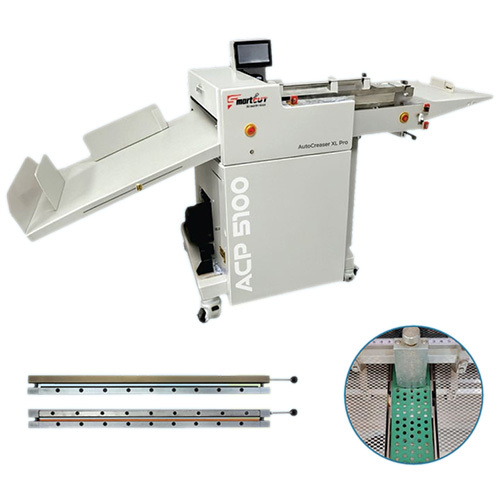

• Model No
• ACP5100

• Motor Power
• 0.3 kW

• Noise Level
• <70 dB

• Operating Temperature
• 5-35C

• Operating Type
• Automatic

• Power
• 120 W

• Power Rating
• 220V/50Hz

• Power Source
• Other, Electric

• Pressure
• Adjustable as per media thickness

• Product Type
• Other, Production Digital Creasing And Perforation Machine

• Production Capacity
• Up to 5000 sheets/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Digital

• Usage & Applications
• Creasing, Perforating, Scoring for digital & offset printed materials

• Voltage
• 220V

• Weight (kg)
• 105 kg
