Digital Creasing And Perforation Machine

• Accuracy
• High Precision Creasing and Perforation

• Color
• White & Blue

• Connectivity Options
• USB, LAN

• Cooling System
• Air Cooling

• Dimension (L*W*H)
• Approx. 1000 x 600 x 500 mm

• Drive
• Electric Motor Driven

• Features
• Touch Control, User Friendly, Multi-Function

• Frame Type
• Rigid Metal Frame

• Frequency
• 50 Hz

• Lubricating System
• Manual

• Machine Type
• Digital (Automatic Feed)

• Model No

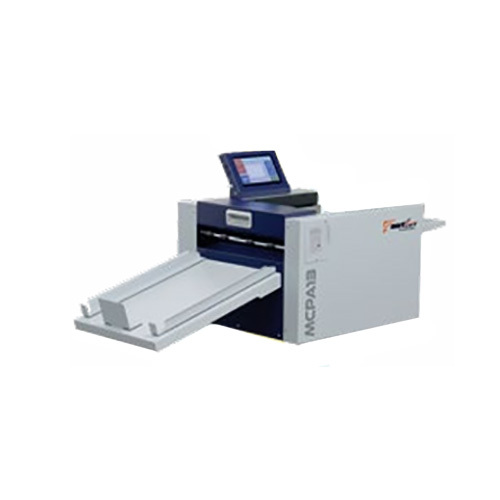

• MCPA 13

• Motor Power
• 0.37 kW

• Noise Level
• Low Noise Operation

• Operating Temperature
• 5C - 35C

• Power
• 220V, 50Hz

• Power Rating
• 0.5 kW

• Power Source
• Other, Electric

• Pressure
• Adjustable, suitable for various paper types

• Product Type
• Other, Digital Creasing and Perforation Machine

• Production Capacity
• Up to 6,000 sheets/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Digital Automation

• Usage & Applications
• Creasing and perforating digital prints, cards, and papers

• Voltage
• 220 Volts

• Weight (kg)
• 45 kg

• Accuracy
• High precision digital setup

• Color
• White/Blue

• Connectivity Options
• USB Interface

• Cooling System
• Air cooled

• Dimension (L*W*H)
• 950 x 480 x 360 mm (approx.)

• Drive
• Belt Drive

• Features
• Touch screen, programmable jobs, automatic feed

• Frame Type
• Steel frame with coated finish

• Frequency
• 50/60 Hz

• Lubricating System
• Manual lubricating

• Machine Type
• Automatic

• Model No

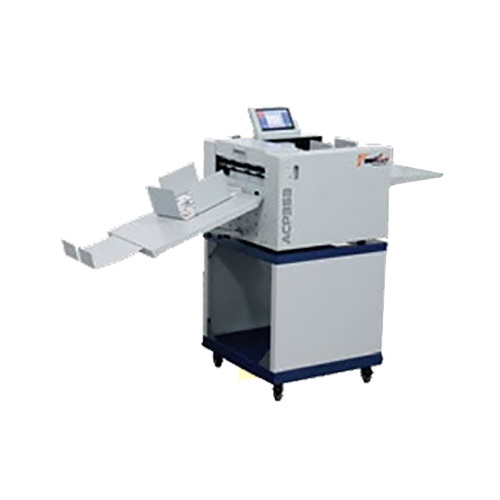

• ACP353

• Motor Power
• 0.5 HP

• Noise Level
• Low

• Operating Temperature
• 10C to 40C

• Operating Type
• Automatic

• Power
• Approx. 500W

• Power Rating
• Single Phase

• Power Source
• Other, Electric

• Pressure
• Adjustable, suitable for a wide range of media thickness

• Product Type
• Other, Digital Creasing And Perforation Machine

• Production Capacity
• Up to 5000 sheets/hour

• Surface Treatment
• Coated

• Technology
• Other, Digital

• Usage & Applications
• Creasing and perforation of digital prints, cards, covers, booklets

• Voltage
• 220V

• Weight (kg)
• Approx. 45 kg

• Accuracy
• High Precision Digital System

• Color
• Blue & White

• Cooling System
• Air Cooled

• Dimension (L*W*H)
• Approx. 1070 x 650 x 1030 mm

• Drive
• Belt Drive

• Features
• Auto feed, Multi-crease, Programmable jobs, LCD touchscreen, Compact design

• Frame Type
• Robust Steel Frame

• Frequency
• 50 Hz

• Lubricating System
• Manual

• Machine Type
• Creasing and Perforation Machine

• Model No

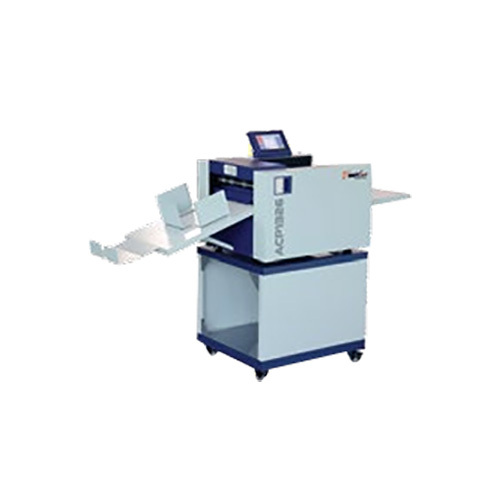

• ACP1326

• Motor Power
• 0.25 HP

• Noise Level
• Low (<65dB)

• Operating Temperature
• 5C to 40C

• Operating Type
• Automatic

• Power
• Approx. 220W

• Power Rating
• 220W

• Power Source
• Other, Electric

• Pressure
• Adjustable

• Product Type
• Other, Digital Creasing And Perforation Machine

• Production Capacity
• Up to 6000 sheets/hour

• Surface Treatment
• Other, Powder Coated

• Technology
• Other, Digital Control

• Usage & Applications
• Creasing and perforating paper, card, etc. in print shops and finishing units

• Voltage
• 220V / 50Hz

• Weight (kg)
• 90 kg
