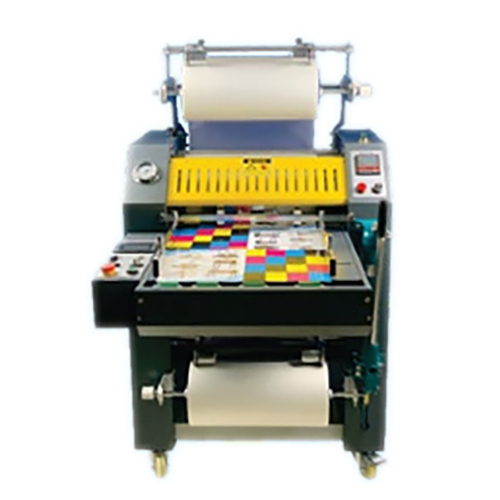

Send Inquiry720L HQ Press Production Press Thermal Lamination Machine
Price 450000 INR/ Piece
MOQ : 1 Piece
720L HQ Press Production Press Thermal Lamination Machine Specification
- Membrance Core Size
- 1, 3
- Lamination Speed
- 0-25 meters/min
- Max Lamination Temp
- 0-130C Adjustable
- Max Film Width
- 720mm
- Product Type
- Thermal Lamination Machine
- Material
- High-grade Steel & Durable Components
- Computerized
- Yes
- Automatic Grade
- Automatic
- Control System
- Digital Touch Panel
- Drive Type
- Electric Motor Drive
- Heating System
- Advanced Thermal Heating Rollers
- Power Source
- Electricity
- Voltage
- 220V / 380V (customizable)
- Weight (kg)
- Approx. 200 kg
- Dimension (L*W*H)
- 1150mm x 1010mm x 1250mm
- Capacity
- 720L/hour
- Color
- Black / Yellow
- Type of Rollers
- Chrome Plated Heat Rollers
- Speed
- Up to 25m/min
- Input Paper Size
- Max. 720mm Width
- Suitable Paper
- Glossy, Matt, Art Paper, Cardstock
- Feeding Type
- Auto Feed Compatible
- Display
- Digital Temperature and Speed Display
- Film Type
- BOPP, PET, Matt, Gloss
- Safety Features
- Emergency Stop, Overheat Protection, Safety Covers
- Maximum Paper Thickness
- 500gsm
- Cutting System
- Integrated Auto Cutting
- Minimum Paper Thickness
- 100gsm
- Power Consumption
- 3.2 kW
- Preheating Time
- 10-15 Minutes
- Operating Noise Level
- <65dB
720L HQ Press Production Press Thermal Lamination Machine Trade Information
- Minimum Order Quantity
- 1 Piece
- Supply Ability
- 5 Pieces Per Month
- Delivery Time
- 7 Days
About 720L HQ Press Production Press Thermal Lamination Machine
Large-format offset-ready production press laminators in 20" and 28" widths. 200 mm upper roller diameter ensures superior film adhesion at high speeds built for large commercial printers and offset finishing houses.
Key Specs:
- Sizes: 20" (550L) & 28" (720L)
- Speed: 015 mtr/min
- Upper Roller Diameter: 200 mm
- Pressure: Hydraulic
- Cutting: Automatic
- Feeding: Conveyor Belt with Overlap Function
- Designation: Offset Ready
FAQ
Q: What sizes are available in the HQ Press series?
A: 20 inch (550L) and 28 inch (720L).
Q: Is the HQ Press suitable for offset print jobs?
A: Yes, both models carry the Offset Ready designation.
Q: What is the upper roller diameter?
A: 200 mm for superior film adhesion.
Tell us about your requirement
Price:
Quantity
Select Unit
- 50
- 100
- 200
- 250
- 500
- 1000+
Additional detail
Mobile number
Email
More Products in Production Press Thermal Lamination Machine Category

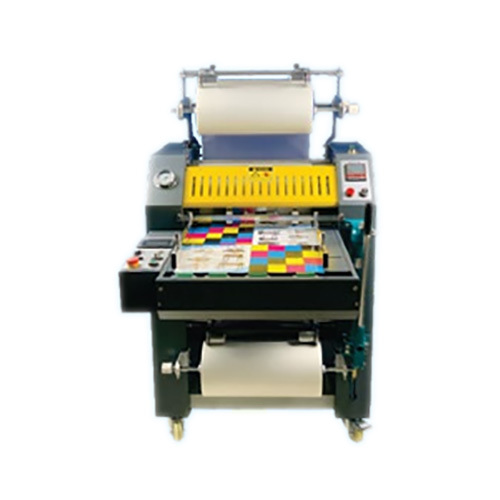

550L Press Production Press Thermal Lamination Machine
Price 450000 INR / Unit
Minimum Order Quantity : 1 Unit
Power Source : Electric
Membrance Core Size : 3 inch
Material : Heavyduty metal structure
Lamination Speed : 020 m/min (adjustable)
390 MAX Production Press Thermal Lamination Machine
Price 650000 INR / Unit
Minimum Order Quantity : 1 Unit
Power Source : Electric
Membrance Core Size : 1 inch/3 inch
Material : Highquality Steel Body
Lamination Speed : Up to 36 m/min
Lamipress 450A Production Press Thermal Lamination Machine
Price 425000 INR / Unit
Minimum Order Quantity : 1 Unit
Power Source : Electric
Membrance Core Size : 1 inch and 3 inch
Material : Metal Body
Lamination Speed : 15 meters/min

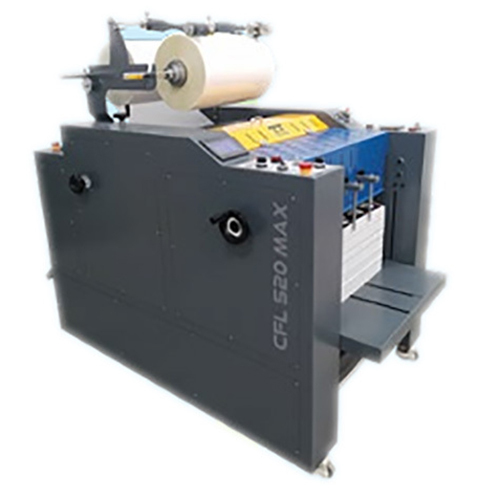

520 HQ MAX Production Press Thermal Lamination Machine
Price 850000 INR / Piece
Minimum Order Quantity : 1 Piece
Power Source : Electric
Membrance Core Size : 3 inch core
Material : Industrialgrade steel and engineered components
Lamination Speed : 040 meters per minute
